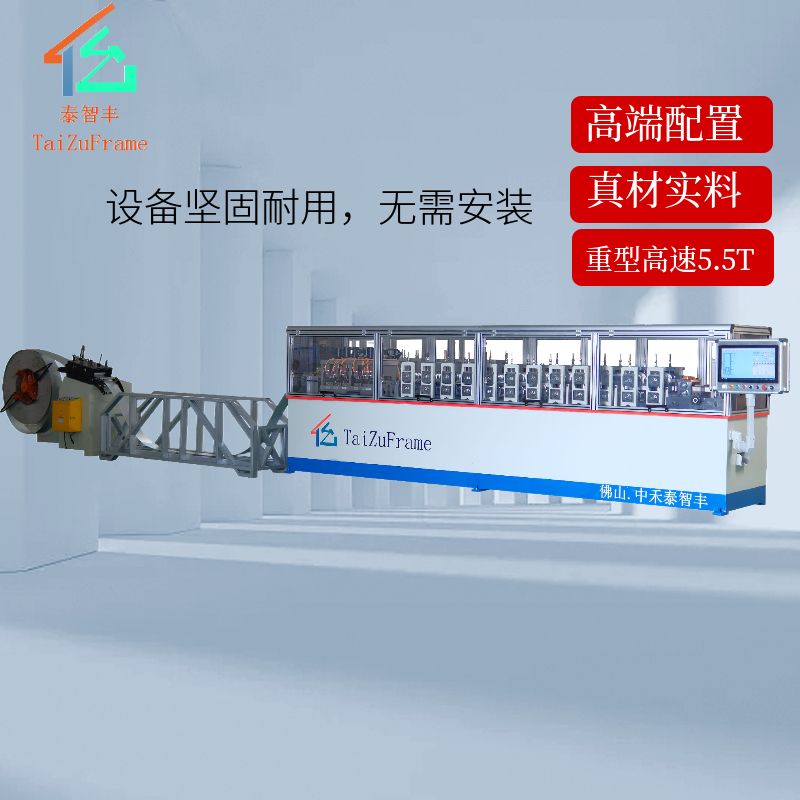

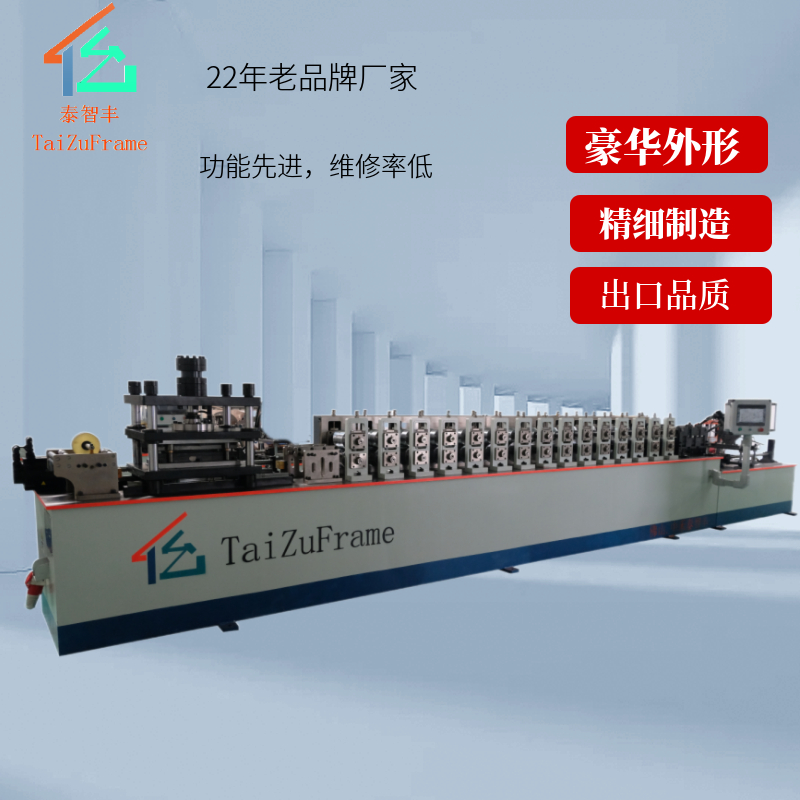

全自动制管设备生产线工艺流程：由金属卷料放料→进料导进→辊压成型型材→自动激光焊接 →型材校平校直→高速锯介断→滚筒接料；整个过程依工业电脑控制系统自动完成；可以根据客户要求定制：圆管制管设备，方管制管设备，异型管制管设备及冲孔成型制管设备，产品精细加工制造精密度高，效率高，操作简单！

The process flow of the fully automatic pipe making equipment production line is as follows: metal coil feeding → feed guiding → roller forming of profiles → automatic laser welding → profile leveling and straightening → high-speed saw cutting → drum feeding; The entire process is automatically completed by the industrial computer control system; We can customize according to customer requirements: round tube equipment, square tube production equipment, irregular tube equipment, and punching forming tube equipment. Our products are finely processed and manufactured with high precision, efficiency, and simple operation!

一，全自动开卷机

Fully automatic rolling machine

1. 液压自动胀芯涨紧

Hydraulic automatic core expansion and tightening

2. 承载材料外径 1300mm；

The maximum outer diameter of the bearing material is 1300mm;

3. 卷料内径 460-520mm；

The inner diameter of the coil is 460-520mm;

4. 板料宽度：小于300mm

Board width: According to the width of the product material

5. 承载重量≥3 吨；

Carrying capacity ≥ 3tons;

自动化程度高，省地方，操作单！

High degree of automation, provincial place, operation list!

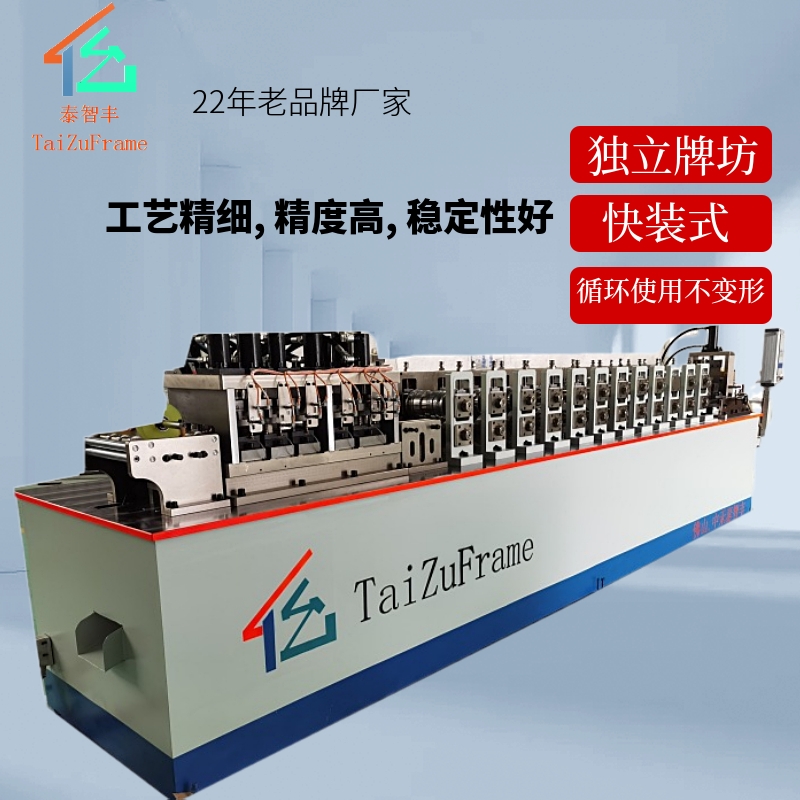

二、成型部分

Forming part

1.机架采用整体式框架结构， 100*50*4 国标方管为内架， 机台面加 20MM 钢板焊接，机 台采用CNC 加工中心加工，保 证机台平面度、直线度及安装 精准定位。

The frame adopts an integral frame structure, with 100 * 50 * 4 national standard square tubes as the inner frame. The machine table is welded with 20MM steel plates, and the machine is processed by CNC machining centers to ensure the flatness, straightness, and accurate installation positioning of the machine.

2.整体侧板：全部经 CNC 加工中心加工。坚固、耐 磨，可循环使用不变形。

Overall side panel: All processed by CNC machining center. Durable, wear-resistant, recyclable without deformation.

3.辊轮跟轴承安装位全采用用 精密加工中心加工方式完成， 保证上下辊轮同心度、径向偏 差≤ 0.1mm；

The installation positions of the rollers and bearings are all completed using precision machining centers, ensuring that the concentricity and radial deviation of the upper and lower rollers are ≤ 0.1mm;

4.轧辊模具材质 Cr12mov,热处 理硬度 HRC58-62；碎火处理 后精磨孔、再 CNC 车床精加 工辊面 、保持辊高精度；

The material of the roller mold is Cr12mov, and the heat treatment hardness is HRC58-62; Fine grinding of holes after crushing, precision machining of roller surfaces on CNC lathes, and maintaining high precision of rollers;

轧辊精度等级为 6-7 级，表 面粗糙度 0.8 以上；

The precision level of the rolling mill is 6-7, and the surface roughness is above 0.8;

5. 辊轴：材料 40Cr 轴径 55MM,调质处理精磨；

Roller shaft: material 40Cr, quenched and tempered, finely ground;

6. 传动部分的成形速度可调， 选用优质40Cr齿轮传动，符合国家质量标准；

The forming speed of the transmission part is adjustable, and high-quality 40Cr gear transmission is selected, which meets national quality standards;

三、切断部分

Cut off the section

1. 形式：采用高速细齿锯介断

Cutting mode: use high speed fine tooth saw

2. 优质乌钢锯片，切口美观变型少。

High quality hacksaw blade, beautiful incision less.

3. 电机功率：3KW

Motor power: 3KW

四、控制系统

control system

1.硬件要求:10寸彩色触摸屏；配有绳遥控器制动操作器

Hardware requirements: 10-inch color touch screen; equipped with rope remote control brake operator

2.控制方式：触摸屏与按钮方式；

Control mode: touch screen and button mode;

3.整线 PLC 集中控制；全闭环高精密控制系统，尺寸精准度高，产品易安装.

Centralized control of whole line PLC; full closed-loop high-precision control system with high size accuracy and easy installation of products.

4.设备制造软件，终身维护；整套系统与 PLC 系统、伺服系统完全匹配，实时监管工作站各系统运行参数。

Equipment manufacturing software, lifetime maintenance; the whole system completely matches the PLC system and servo system, and monitors the operating parameters of each system in real time.

5.操作方式有手动/自动两种。具有手动、自动切换功能：在手动状态下，能进行单机运行，方便调试与维修；在自动状态下，进行全线生产运行，顺序启动；全线设有急停按钮，易于处理紧急事故，保证设备和操作人员安全；

There are two modes of operation: manual and automatic. Equipped with manual and automatic switching functions: in manual mode, it can operate on a single machine for easy debugging and maintenance; In automatic mode, perform full line production operation and start in sequence; The entire line is equipped with emergency stop buttons, which are easy to handle emergency accidents and ensure the safety of equipment and operators;

五、激光焊接设备

Laser welding equipment

采用HW3000激光焊接，配备4000W专用焊接头，焊缝平滑漂亮，操作简单，速度快，耗材少。

Using the HW3000 laser welding,Equipped with 4000W special welding head,

The weld is smooth and beautiful, simple to operate, fast speed, less consumables.
